FR Commercial Fabrics

Creating comfortable working environments for increased productivity

We’ve hand-picked the finest fabrics to offer efficient heat and glare control in workspaces to improve comfort levels, privacy and productivity. Our fabrics also meet a variety of environmental standards that help designers achieve high green-build ratings.

Fabrics

Duncan Cotterill Building

View® FR

Sunscreen fabrics

Durable and easy to maintain, these fabrics offer a great selection of colours and openness factor.

View

Trust Power Building

Ecoview® FR

Sunscreen fabrics

Made from eco-friendly yarn with the lowest levels of VOC emissions compared to other fabrics.

View

Westpac Building

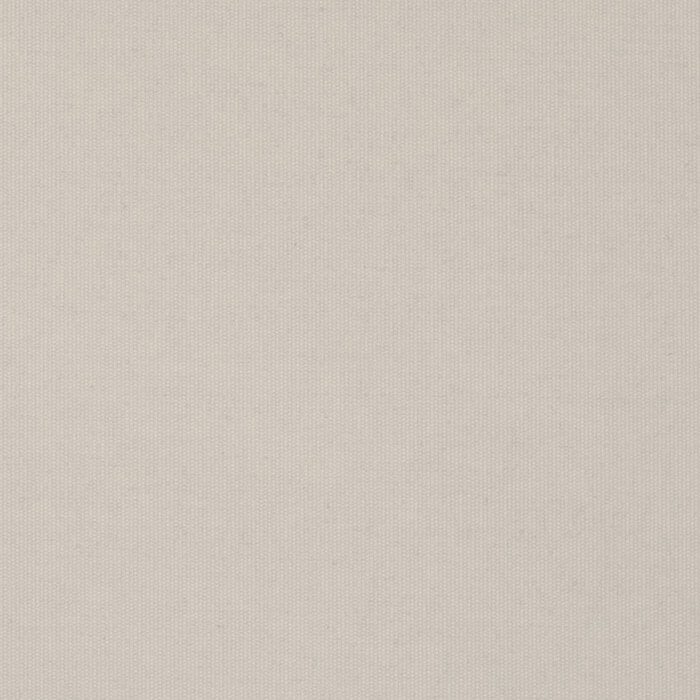

Thermo Block® FR

Blockout fabrics

A stylish range of fabrics that provide 100% light block and insulating qualities.

View

View® FR Sunscreen

The highest quality sunscreen on the market.

Overview

PVC coated woven sunscreen fabrics combine outward visibility with glare and heat protection. Durable and easy to maintain, these fabrics offer a suitable solution for any environment and protection level needed based on the fabric’s openness factor and colour.

  • Made from Polyester yarn coated with PVC.
  • Made by a manufacturer that is ISO 14001 certified (the highest standard for Environmental Management System).
  • Highly fire retardant (tested to AS/NZ Part 2 with a flammability Index between 0 and 1).
  • Tested and certified for low VOC emissions – no chemicals harmful to the health or safety of users.
  • Between 3%–5% open.
  • UV Blockage – up to 96% (depending on colour).
  • Dark colours have a VLT (Visual Light Transmittance) <10.
  • Raw materials sourced from the USA and Europe.
  • Durable and easy to clean.
  • Colour fastness – Grade 8 (scale of 8).
  • Eco-Friendly – certified to Greenguard and Oeko-Tex. Complies with ‘Best Practice PVC’ as defined the NZGBC Green Star Manual.

Specifications

Eco friendly icon Eco-friendlyFire retardant icon Fire retardantFire retardant icon PVC Free

Width 3000 mm
Price Category 2 / 3
Openness Factor 3%-5%
Fire Classification Fire Retardant AS/NZ 1530 Part 2.
Flammability Index 1
NZGBC Green Star DAB NZv1.1/INT Potential Points Greent Star icon 1 / 2 / 3
Eco-Spec Greenguard
OEKO-TEX
ISO 14001
Key to Specifications
Greenstar logo

NZGBC Green Star DAB NZv1.1 / INT NZv1.1 credit

12.1B/11.1B Glare Control – this credit rewards it using internal blinds. The nominated SP Blinds fabrics have a VLT less than 10% and can contribute towards a point, provided all the design details are in accordance with the Technical Manual.

20.3A/20.2A Responsible Building Materials – 1 point is available where 90% (by cost) of all permanent formwork, pipes, flooring, blinds and cables in a project either:

  • do not contain PVC and have a recognised product declaration;
  • OR meet the GBCA’s Best Practice Guidelines for PVC.

21C, 21D/21C, 21D Sustainable Products – up to 3 points are available when a proportion of all materials used in the project meet transparency and sustainability requirements under the initiatives.

ISO 14001 – the ISO 14001 standard is the most important international standard specifying the requirements of an Environmental Management System (EMS). Companies who implemented the ISO 14001 standard cannot use any harmful substances in their products.

Green Tag Gold Logo

Green Tag Certified – Gold – a third party, green building product rating and certification system, underpinned by rigorous scientific and Life Cycle Assessment (LCA) processes.

Oeko-Tex Logo

Oeko-Tex – the STANDARD 100 by OEKO-TEX® is a worldwide independent testing and certification system for harmful substances in textile products.

VLT Visual Light Transmittance – the percentage of visible light coming through the fabric, that can be seen by the naked eye. A low figure shows a very efficient fabric.

As Solar Absorbance – the proportion of solar radiation (heat) absorbed by the fabric. A low figure means the fabric absorbs little solar energy.

Rs Solar Reflectance – this factor measures how much solar radiation is reflected by the fabric. A high percentage means the fabric performs well at reflecting solar energy.

Ts Solar Transmittance – the proportion of solar energy (heat) transmitted through the fabric. A low percentage means the fabric performs well at reducing solar energy.

Colours

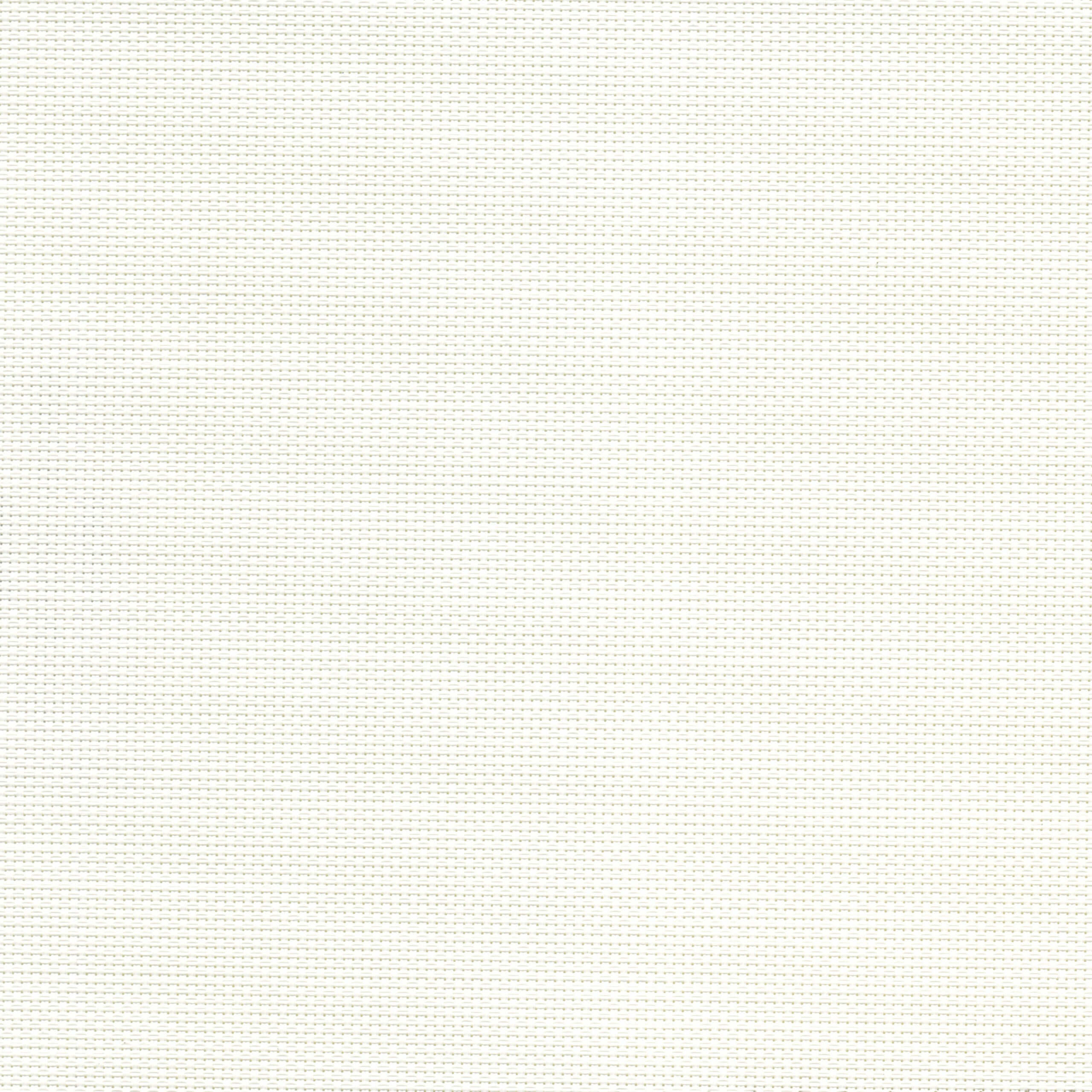

Sail 3%

Solar & Optical Properties
VLT
12
As
13
Rs
70
Ts
17

Width: 3000 mm

Price Category 2

Greenguard

Low VOC

RoHS/Lead Free

Eco friendly icon Fire retardant icon Greent Star icon1

Sand 3%

Solar & Optical Properties
VLT
9
As
29
Rs
57
Ts
13

Width: 3000 mm

Price Category 2

Greenguard

Low VOC

RoHS/Lead Free

Eco friendly icon Fire retardant icon Greent Star icon2

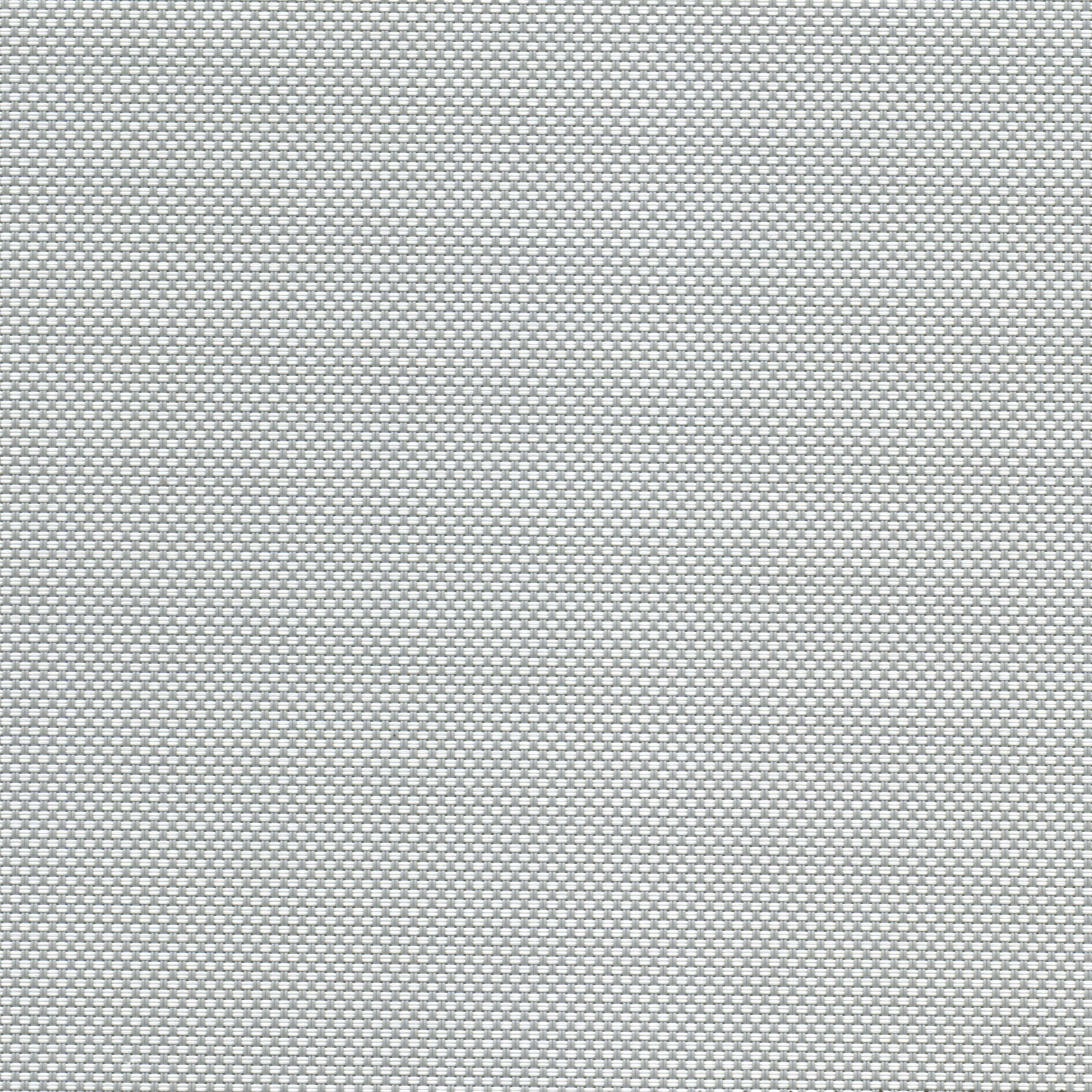

Gull 3%

Solar & Optical Properties
VLT
6
As
51
Rs
40
Ts
8

Width: 3000 mm

Price Category 2

Greenguard

Low VOC

RoHS/Lead Free

Eco friendly icon Fire retardant icon Greent Star icon2

Orca 3%

Solar & Optical Properties
VLT
6
As
63
Rs
31
Ts
6

Width: 3000 mm

Price Category 2

Greenguard

Low VOC

RoHS/Lead Free

Eco friendly icon Fire retardant icon Greent Star icon2

Schist 3%

Solar & Optical Properties
VLT
7
As
83
Rs
11
Ts
6

Width: 3200 mm

Price Category 2

Greenguard

Low VOC

RoHS/Lead Free

Eco friendly icon Fire retardant icon Greent Star icon2

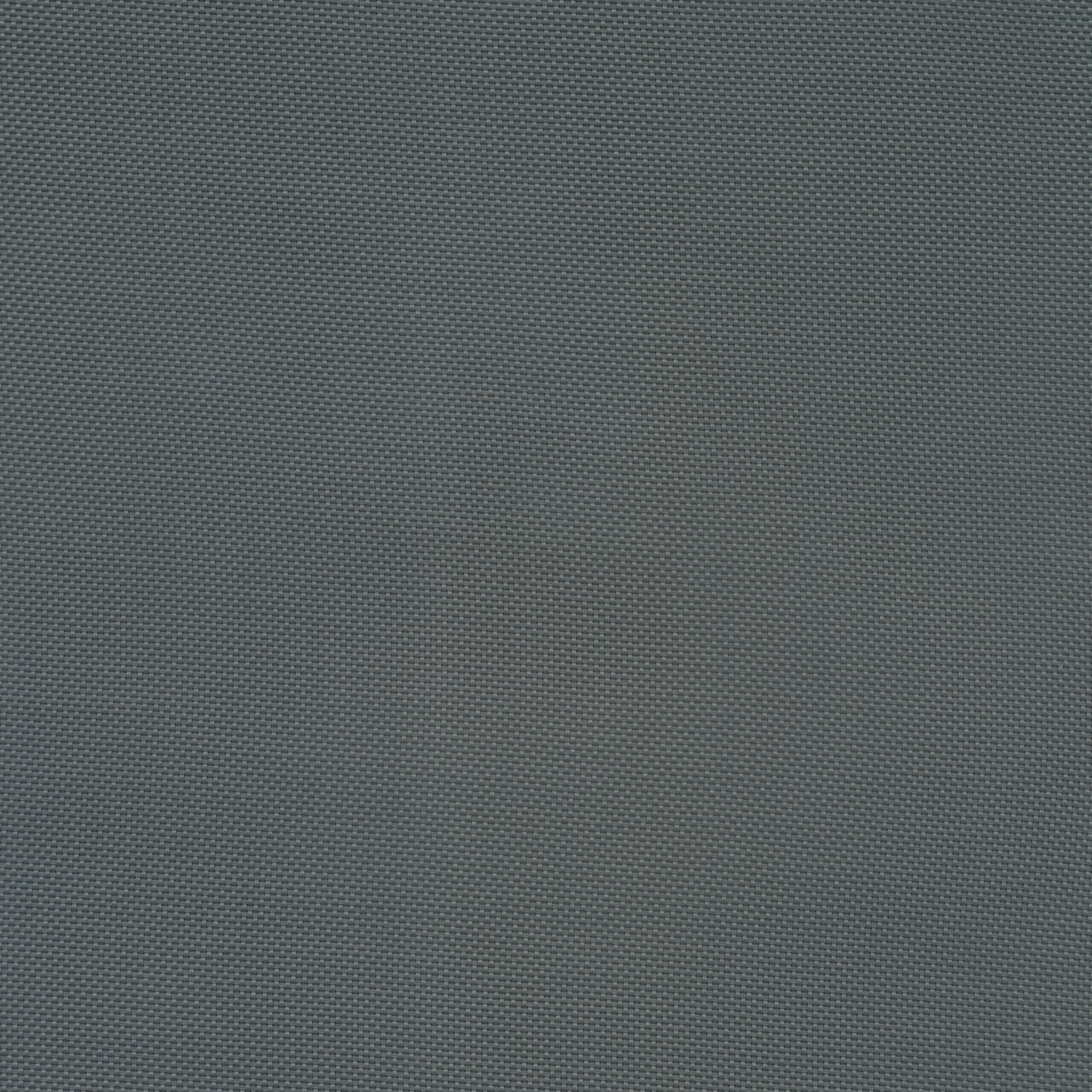

Ranguru 3%

Solar & Optical Properties
VLT
5
As
82
Rs
12
Ts
5

Width: 3000 mm

Price Category 2

Greenguard

Low VOC

RoHS/Lead Free

Eco friendly icon Fire retardant icon Greent Star icon2

Greywacke 3%

Solar & Optical Properties
VLT
5
As
81
Rs
14
Ts
5

Width: 3000 mm

Price Category 2

Greenguard

Low VOC

RoHS/Lead Free

Eco friendly icon Fire retardant icon Greent Star icon2

Piwakawaka 3%

Solar & Optical Properties
VLT
4
As
90
Rs
6
Ts
4

Width: 3000 mm

Price Category 2

Greenguard

Low VOC

RoHS/Lead Free

Eco friendly icon Fire retardant icon Greent Star icon2

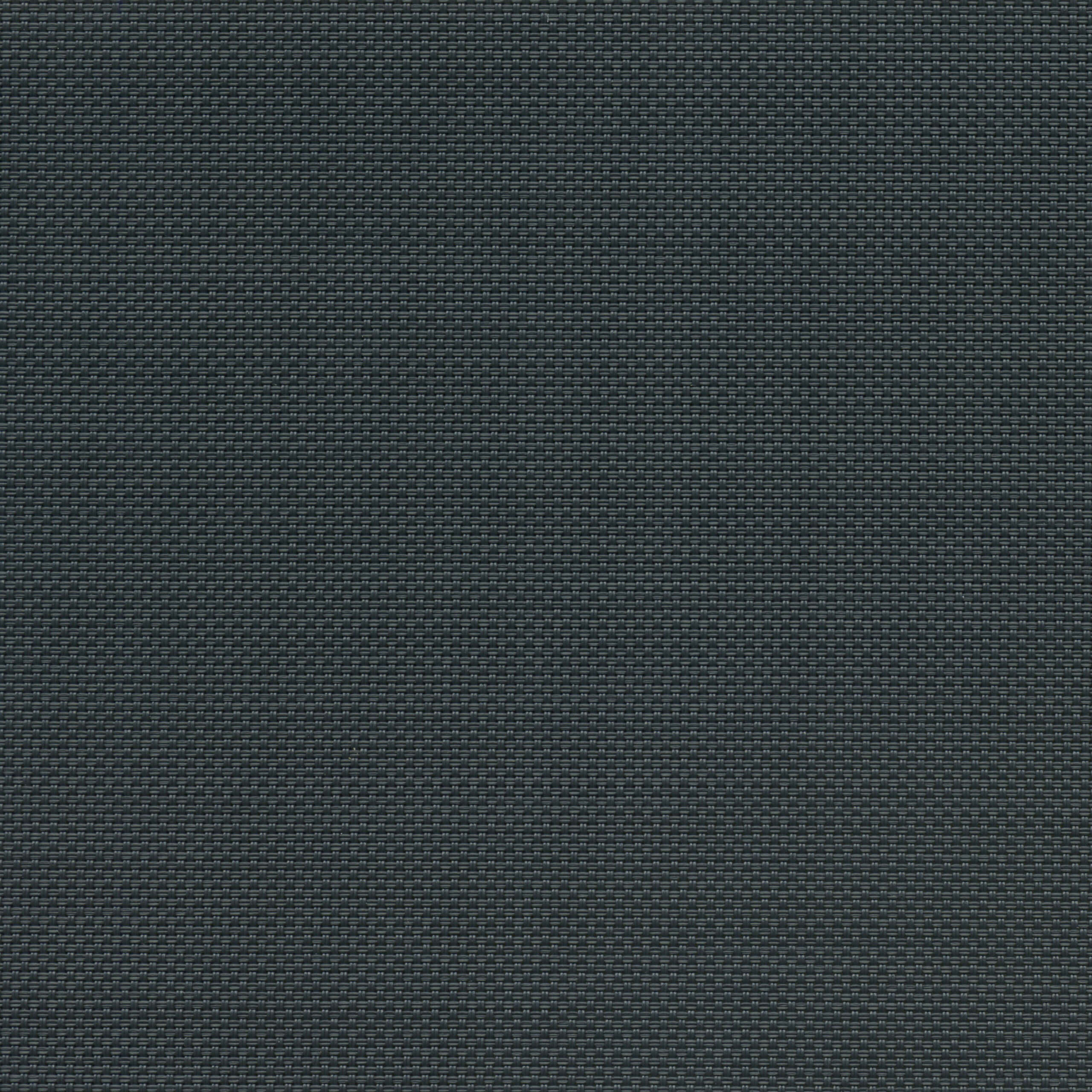

Takahe 3%

Solar & Optical Properties
VLT
4
As
91
Rs
4
Ts
4

Width: 3000 mm

Price Category 2

Greenguard

Low VOC

RoHS/Lead Free

Eco friendly icon Fire retardant icon Greent Star icon2

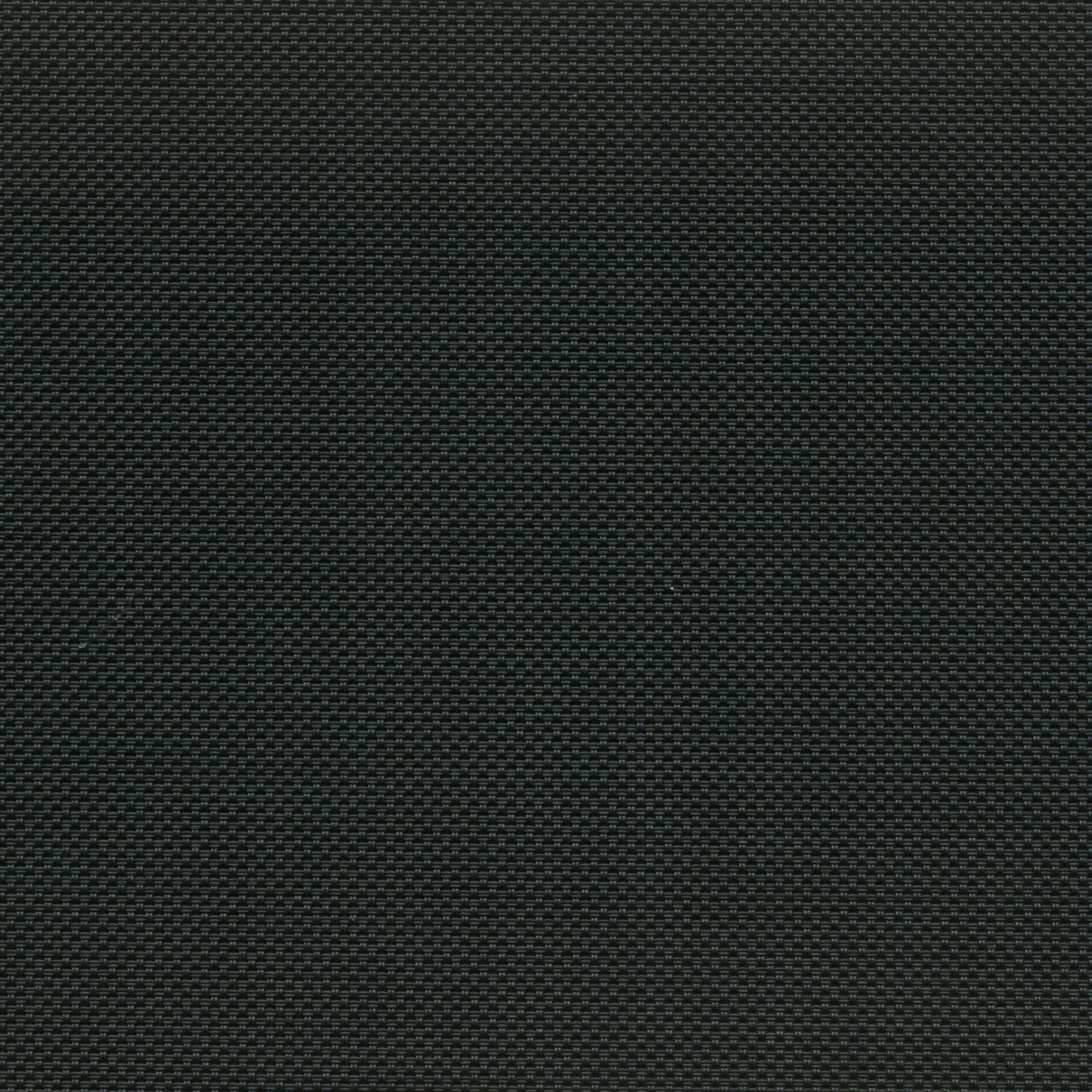

Cormorant 3%

Solar & Optical Properties
VLT
5
As
93
Rs
3
Ts
4

Width: 3200 mm

Price Category 2

Greenguard

Low VOC

RoHS/Lead Free

Eco friendly icon Fire retardant icon Greent Star icon2

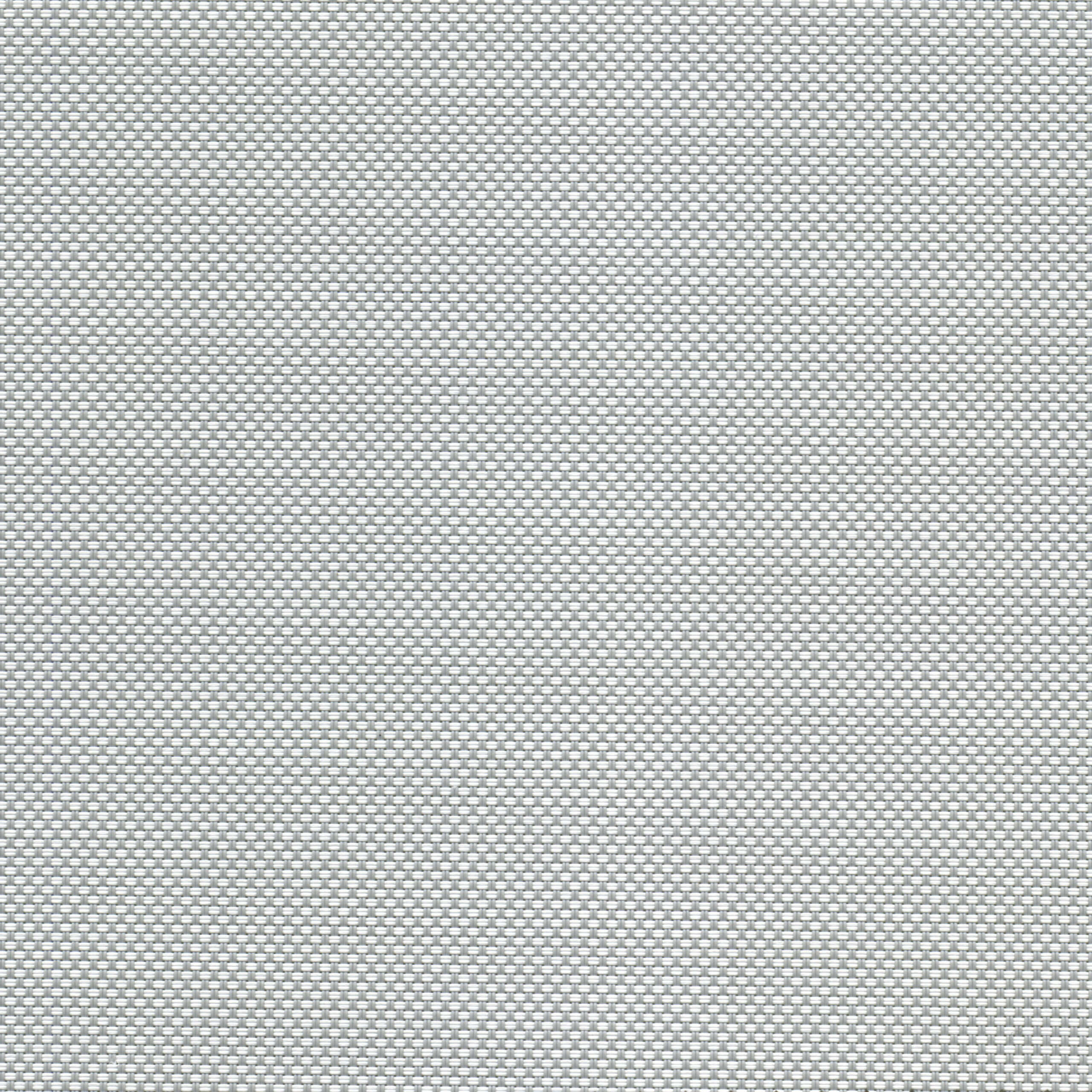

Karoro 5%

Solar & Optical Properties
VLT
11
As
41
Rs
49
Ts
10

Width: 3200 mm

Price Category 2

Greenguard

Low VOC

RoHS/Lead Free

Eco friendly icon Fire retardant icon Greent Star icon1

Riverstone 5%

Solar & Optical Properties
VLT
10
As
83
Rs
10
Ts
7

Width: 3200 mm

Price Category 2

Greenguard

Low VOC

RoHS/Lead Free

Eco friendly icon Fire retardant icon Greent Star icon1

Kiwi 5%

Solar & Optical Properties
VLT
9
As
88
Rs
5
Ts
7

Width: 3200 mm

Price Category 2

Greenguard

Low VOC

RoHS/Lead Free

Eco friendly icon Fire retardant icon Greent Star icon2

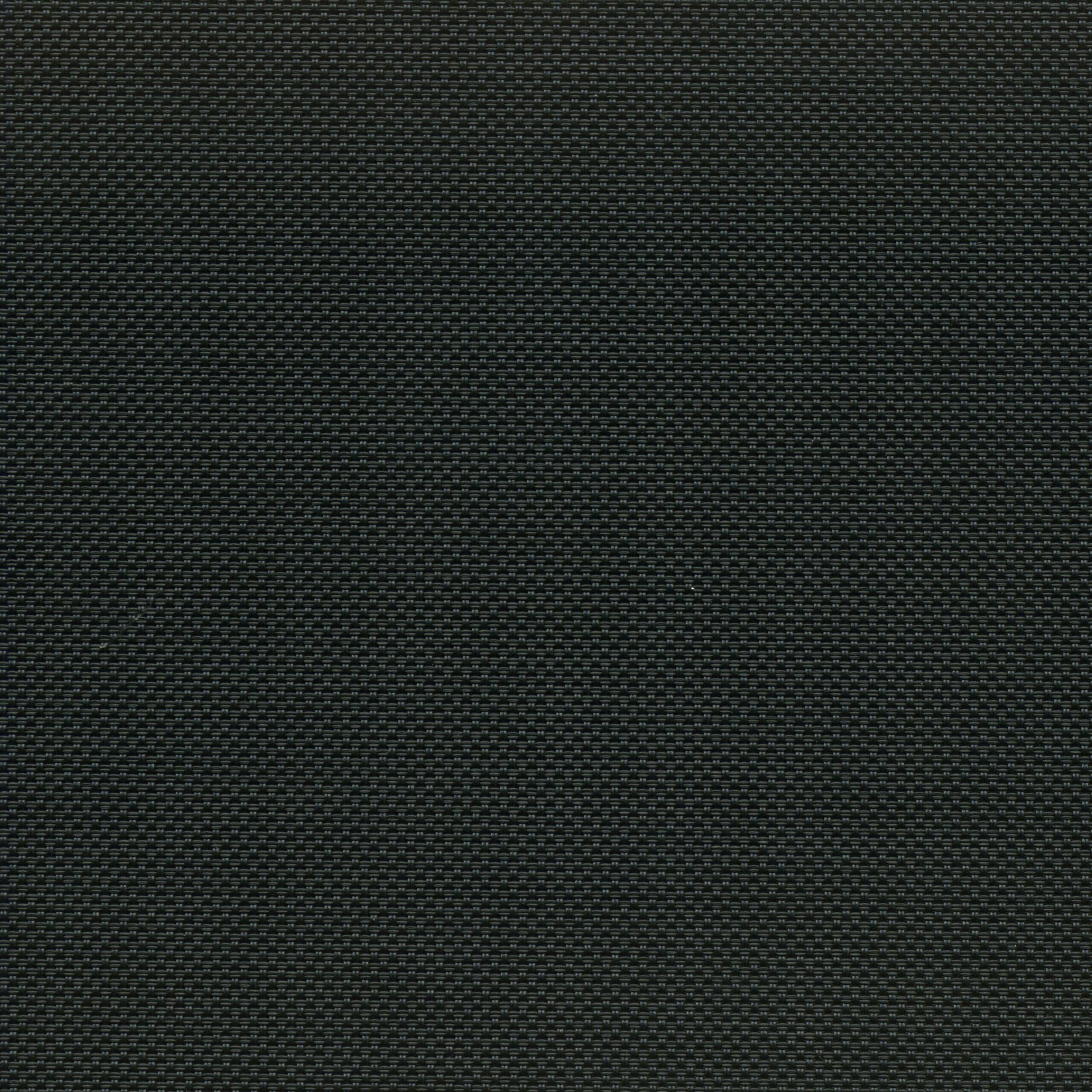

Toutouwai 5%

Solar & Optical Properties
VLT
7
As
92
Rs
3
Ts
5

Width: 3000 mm

Price Category 2

Greenguard

Low VOC

RoHS/Lead Free

Eco friendly icon Fire retardant icon Greent Star icon2

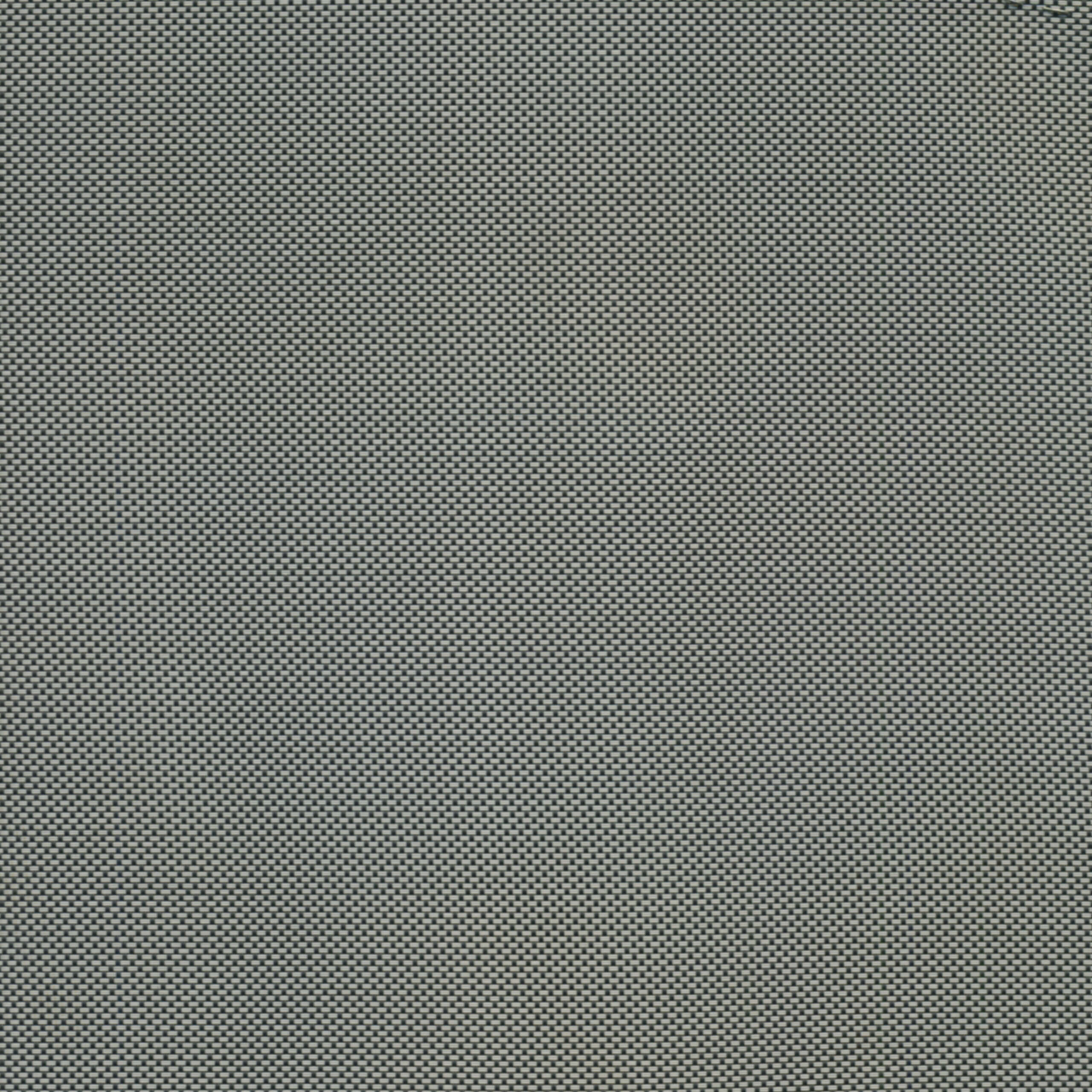

Monowai 5%

Solar & Optical Properties
VLT
7
As
82
Rs
13
Ts
5

Width: 3000 mm

Price Category 3

Oeko-Tex

Greenguard

Eco friendly icon Fire retardant icon Greent Star icon2

Stone 5%

Solar & Optical Properties
VLT
8
As
55
Rs
30
Ts
14

Width: 3000 mm

Price Category 3

Greenguard

50% Trevira CS

Eco friendly icon Fire retardant icon PVC free icon Greent Star icon3

Schwarz 5%

Solar & Optical Properties
VLT
6
As
73
Rs
17
Ts
9

Width: 3000 mm

Price Category 3

Greenguard

50% Trevira CS

Eco friendly icon Fire retardant icon PVC free icon Greent Star icon3

Ecoview® FR Sunscreen

A selection of eco-friendly, PVC-free sunscreens

Overview

Ecoview sunscreen fabrics are made in Germany from 100% Trevira CS, a highly eco-friendly yarn with the lowest levels of VOC emissions compared to other roller blind fabrics. These fabrics combine outward visibility with excellent glare and heat control.
  • Made of 100% Trevira CS with no PVC, Formaldehyde or Halogen to help reduce toxins in the environment.
  • No after-glow, very low emission of fumes in case of fire.
  • Inherently fire retardant, achieved at the molecular level, not by using chemicals.
  • Tested and complies with the NZ Building Code fire requirements.
  • 3% open fabrics providing high-level UV protection.
  • Metal backed fabrics for better heat and glare control.
  • Good outward visibility with excellent thermal and visual comfort levels.
  • High colour brilliance and fastness to light.
  • Ultrasonic sealed edges.
  • Suitable for use in humid environments.
  • Recyclable.
  • Made in Germany.

Specifications – Ecoview

Eco friendly icon Eco-friendlyFire retardant icon Fire retardantFire retardant icon PVC Free

Width 2500 mm / 3000 mm
Price Category 3
Openness Factor 3%
Fire Classification Fire Retardant AS/NZ 1530 Part 2.
Flammability Index 1
NZGBC Green Star DAB NZv1.1/INT Potential Points Greent Star icon 2 / 3
Eco-Spec PVC Free
OEKO-TEX
Green Tag Gold
Key to Specifications
Greenstar logo

NZGBC Green Star DAB NZv1.1 / INT NZv1.1 credit

12.1B/11.1B Glare Control – this credit rewards it using internal blinds. The nominated SP Blinds fabrics have a VLT less than 10% and can contribute towards a point, provided all the design details are in accordance with the Technical Manual.

20.3A/20.2A Responsible Building Materials – 1 point is available where 90% (by cost) of all permanent formwork, pipes, flooring, blinds and cables in a project either:

  • do not contain PVC and have a recognised product declaration;
  • OR meet the GBCA’s Best Practice Guidelines for PVC.

21C, 21D/21C, 21D Sustainable Products – up to 3 points are available when a proportion of all materials used in the project meet transparency and sustainability requirements under the initiatives.

Green Tag Gold Logo

Green Tag Certified – Gold – a third party, green building product rating and certification system, underpinned by rigorous scientific and Life Cycle Assessment (LCA) processes.

Oeko-Tex Logo

Oeko-Tex – the STANDARD 100 by OEKO-TEX® is a worldwide independent testing and certification system for harmful substances in textile products.

Trevira CS Logo

PVC Free – Trevira CS is a high spec, eco-friendly type of man-made yarn, which is free of PVC, Halogen and Formaldehyde. It is inherently and permanently fire-retardant thanks to its molecular structure.

VLT Visual Light Transmittance – the percentage of visible light coming through the fabric, that can be seen by the naked eye. A low figure shows a very efficient fabric.

As Solar Absorbance – the proportion of solar radiation (heat) absorbed by the fabric. A low figure means the fabric absorbs little solar energy.

Rs Solar Reflectance – this factor measures how much solar radiation is reflected by the fabric. A high percentage means the fabric performs well at reflecting solar energy.

Ts Solar Transmittance – the proportion of solar energy (heat) transmitted through the fabric. A low percentage means the fabric performs well at reducing solar energy.

Blanc

Solar & Optical Properties
VLT
33
As
5
Rs
58
Ts
37

Width: 2500 / 3000 mm

Price Category 3

OEKO-TEX

Green Tag Gold

Eco friendly icon Fire retardant icon PVC free icon Greent Star icon2

Whisper

Solar & Optical Properties
VLT
34
As
7
Rs
58
Ts
35

Width: 2500 / 3000 mm

Price Category 3

OEKO-TEX

Green Tag Gold

Eco friendly icon Fire retardant icon PVC free icon Greent Star icon2

Earth

Solar & Optical Properties
VLT
9
As
35
Rs
41
Ts
24

Width: 2500 / 3000 mm

Price Category 3

OEKO-TEX

Green Tag Gold

Eco friendly icon Fire retardant icon PVC free icon Greent Star icon3

Solitaire

Solar & Optical Properties
VLT
9
As
37
Rs
38
Ts
25

Width: 2500 / 3000 mm

Price Category 3

OEKO-TEX

Green Tag Gold

Eco friendly icon Fire retardant icon PVC free icon Greent Star icon3

Ammo

Solar & Optical Properties
VLT
6
As
43
Rs
35
Ts
22

Width: 2500 / 3000 mm

Price Category 3

OEKO-TEX

Green Tag Gold

Eco friendly icon Fire retardant icon PVC free icon Greent Star icon3

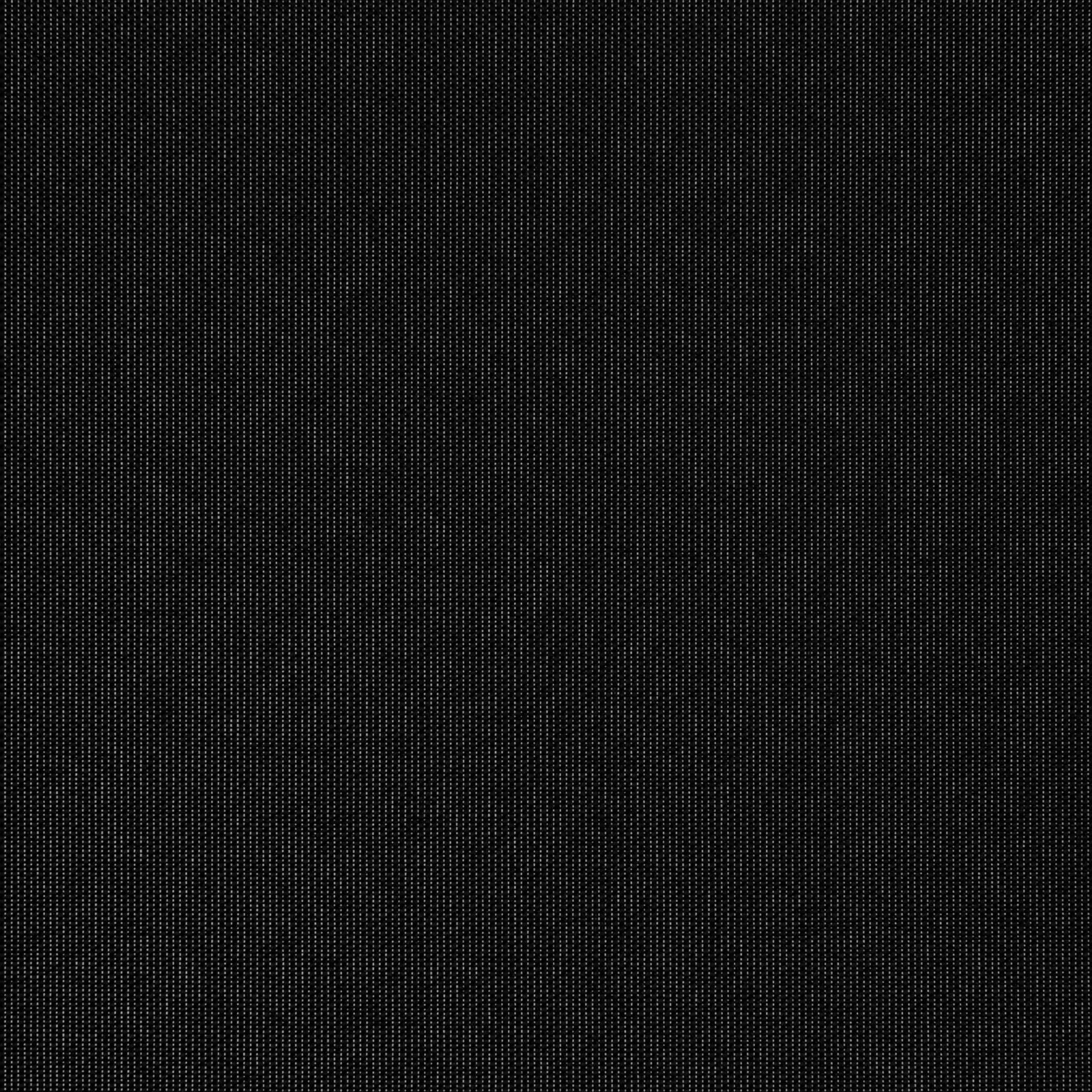

Gunmetal

Solar & Optical Properties
VLT
5
As
45
Rs
34
Ts
21

Width: 2500 / 3000 mm

Price Category 3

OEKO-TEX

Green Tag Gold

Eco friendly icon Fire retardant icon PVC free icon Greent Star icon3

Rook

Solar & Optical Properties
VLT
3
As
48
Rs
32
Ts
20

Width: 2500 / 3000 mm

Price Category 3

OEKO-TEX

Green Tag Gold

Eco friendly icon Fire retardant icon PVC free icon Greent Star icon3

Silver

Solar & Optical Properties
VLT
19
As
25
Rs
45
Ts
30

Width: 3000 mm

Price Category 3

OEKO-TEX

Eco friendly icon Fire retardant icon PVC free icon Green Star icon2

Grey

Solar & Optical Properties
VLT
9
As
38
Rs
37
Ts
25

Width: 3000 mm

Price Category 3

OEKO-TEX

Eco friendly icon Fire retardant icon PVC free icon Green Star icon3

Anthracite

Solar & Optical Properties
VLT
6
As
52
Rs
28
Ts
20

Width: 3000 mm

Price Category 3

OEKO-TEX

Eco friendly icon Fire retardant icon PVC free icon Green Star icon3

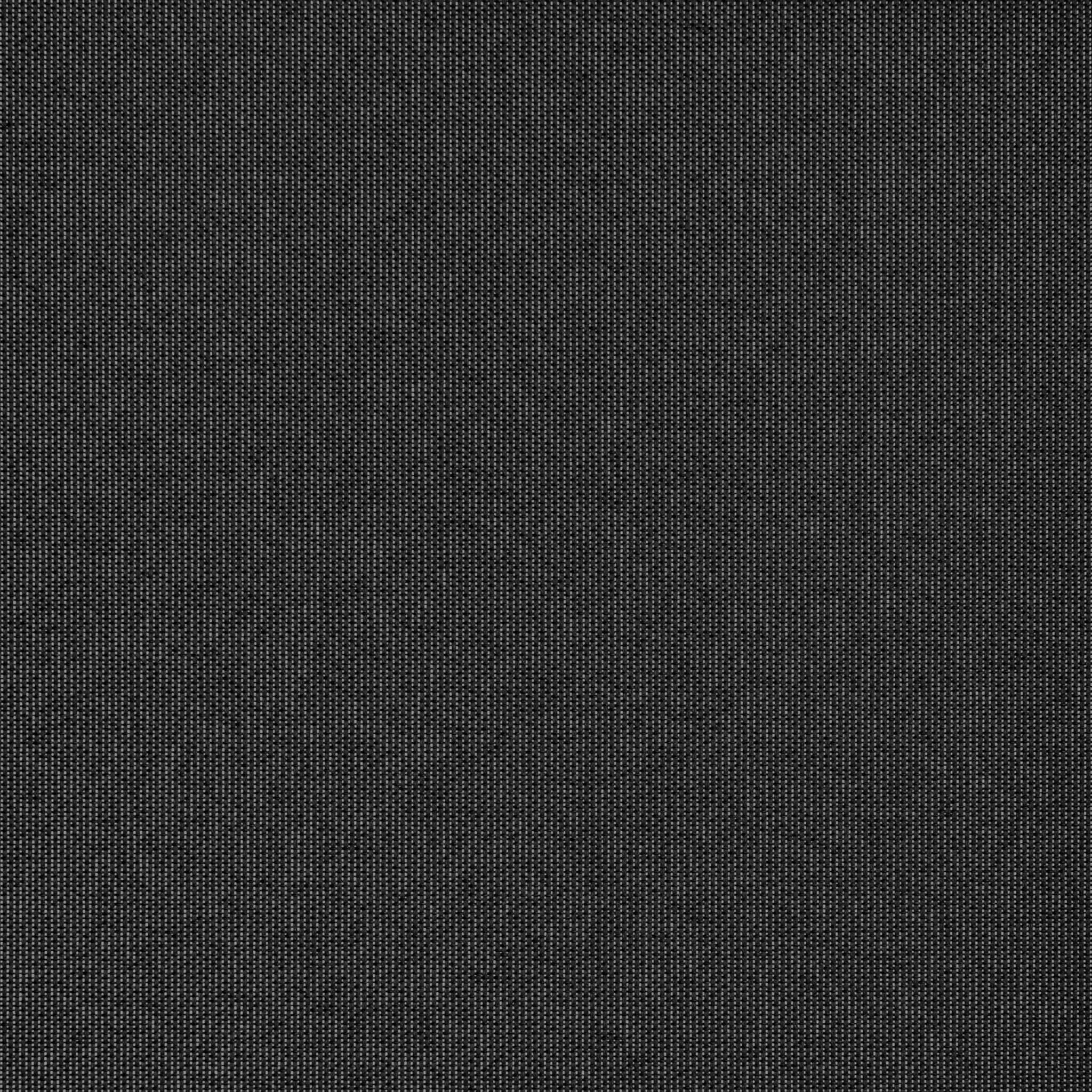

Specifications – Ecoview Met

Eco friendly icon Eco-friendlyFire retardant icon Fire retardantFire retardant icon PVC Free

Width 1550 / 2400 / 2850 mm
Price Category 4
Openness Factor 3%
Fire Classification Fire Retardant AS/NZ 1530 Part 2.
Flammability Index 1
NZGBC Green Star DAB NZv1.1/INT Potential Points Greent Star icon 2 / 3
Eco-Spec PVC Free
OEKO-TEX
Green Tag Gold

Met Antique

Solar & Optical Properties
VLT
8
As
40
Rs
51
Ts
9

Width: 2400 / 2850 mm

Price Category 4

OEKO-TEX

Green Tag Gold

Eco friendly icon Fire retardant icon PVC free icon Greent Star icon3

Met Gravel

Solar & Optical Properties
VLT
4
As
44
Rs
49
Ts
7

Width: 2400 / 2850 mm

Price Category 4

OEKO-TEX

Green Tag Gold

Eco friendly icon Fire retardant icon PVC free icon Greent Star icon3

Met Pottery

Solar & Optical Properties
VLT
6
As
42
Rs
50
Ts
8

Width: 2400 / 2850 mm

Price Category 4

OEKO-TEX

Green Tag Gold

Eco friendly icon Fire retardant icon PVC free icon Greent Star icon3

Met Oxide

Solar & Optical Properties
VLT
3
As
45
Rs
49
Ts
6

Width: 1550 / 2850 mm

Price Category 4

OEKO-TEX

Green Tag Gold

Eco friendly icon Fire retardant icon PVC free icon Greent Star icon3

Met Ink

Solar & Optical Properties
VLT
3
As
46
Rs
48
Ts
6

Width: 2400 / 2850 mm

Price Category 4

OEKO-TEX

Green Tag Gold

Eco friendly icon Fire retardant icon PVC free icon Greent Star icon3

Met Silver

Solar & Optical Properties
VLT
7
As
42
Rs
50
Ts
8

Width: 2400 / 2850 mm

Price Category 4

OEKO-TEX

Eco friendly icon Fire retardant icon PVC free icon Greent Star icon3

Met Grey

Solar & Optical Properties
VLT
5
As
42
Rs
51
Ts
7

Width: 2400 / 2850 mm

Price Category 4

OEKO-TEX

Eco friendly icon Fire retardant icon PVC free icon Greent Star icon3

Met Anthracite

Solar & Optical Properties
VLT
5
As
48
Rs
46
Ts
6

Width: 2400 / 2850 mm

Price Category 4

OEKO-TEX

Eco friendly icon Fire retardant icon PVC free icon Greent Star icon3

Thermo Block® FR Blockout

A range of plain-weave coated fabrics in earthy tones

Overview

Blockout fabrics are designed to provide 100% light block making them the ultimate solution for any interior that requires darkness, such as bedrooms or AV rooms. The Thermo Block® ranges also have the added benefit of insulating qualities.

  • NZGBC Green Star Points credits.
  • Made of 100% Polyester with no PVC.
  • Fire retardant, complies with the NZ Building Code requirements.
  • “Soft touch” feel and look.
  • 100% blockout coating.
  • Flocked backing provides insulating qualities.

Specifications

Eco friendly icon Eco-friendlyFire retardant icon Fire retardantFire retardant icon PVC Free

Width 2000 mm / 2400 mm / 3000 mm / 3200 mm
Price Category 2
Light Block 100%
Fire Classification Fire Retardant AS/NZ 1530 Part 2.
Flammability Index less than 12.
NZGBC Green Star DAB NZv1.1/INT Potential Points Greent Star icon 2
Eco-Spec PVC Free
Greenguard
Key to Specifications
Greenstar logo

NZGBC Green Star DAB NZv1.1 / INT NZv1.1 credit

12.1B/11.1B Glare Control – this credit rewards it using internal blinds. The nominated SP Blinds fabrics have a VLT less than 10% and can contribute towards a point, provided all the design details are in accordance with the Technical Manual.

20.3A/20.2A Responsible Building Materials – 1 point is available where 90% (by cost) of all permanent formwork, pipes, flooring, blinds and cables in a project either:

  • do not contain PVC and have a recognised product declaration;
  • OR meet the GBCA’s Best Practice Guidelines for PVC.

21C, 21D/21C, 21D Sustainable Products – up to 3 points are available when a proportion of all materials used in the project meet transparency and sustainability requirements under the initiatives.

ISO 14001 – the ISO 14001 standard is the most important international standard specifying the requirements of an Environmental Management System (EMS). Companies who implemented the ISO 14001 standard cannot use any harmful substances in their products.

Green Tag Gold Logo

Green Tag Certified – Gold – a third party, green building product rating and certification system, underpinned by rigorous scientific and Life Cycle Assessment (LCA) processes.

Oeko-Tex Logo

Oeko-Tex – the STANDARD 100 by OEKO-TEX® is a worldwide independent testing and certification system for harmful substances in textile products.

VLT Visual Light Transmittance – the percentage of visible light coming through the fabric, that can be seen by the naked eye. A low figure shows a very efficient fabric.

As Solar Absorbance – the proportion of solar radiation (heat) absorbed by the fabric. A low figure means the fabric absorbs little solar energy.

Rs Solar Reflectance – this factor measures how much solar radiation is reflected by the fabric. A high percentage means the fabric performs well at reflecting solar energy.

Ts Solar Transmittance – the proportion of solar energy (heat) transmitted through the fabric. A low percentage means the fabric performs well at reducing solar energy.

Colours

Oasis

Width: 2400 / 3000 mm

Price Category 2

Greenguard

Eco friendly icon Fire retardant icon PVC free icon Greent Star icon2

Tahoe

Width: 3200 mm

Price Category 2

Greenguard

Eco friendly icon Fire retardant icon PVC free icon Greent Star icon2

Arctic

Width: 3200 mm

Price Category 2

Greenguard

Eco friendly icon Fire retardant icon PVC free icon Greent Star icon2

Antigua

Width: 3200 mm

Price Category 2

Greenguard

Eco friendly icon Fire retardant icon PVC free icon Greent Star icon2

Kasabian

Width: 2400 / 3000 mm

Price Category 2

Greenguard

Eco friendly icon Fire retardant icon PVC free icon Greent Star icon2

Shoal

Width: 3200 mm

Price Category 2

Greenguard

Eco friendly icon Fire retardant icon PVC free icon Greent Star icon2

Acadia

Width: 2000 / 3000 mm

Price Category 2

Greenguard

Eco friendly icon Fire retardant icon PVC free icon Greent Star icon2

Cannes

Width: 3200 mm

Price Category 2

Greenguard

Eco friendly icon Fire retardant icon PVC free icon Greent Star icon2

Sterling

Width: 3000 mm

Price Category 2

Greenguard

Eco friendly icon Fire retardant icon PVC free icon Greent Star icon2

Arbour

Width: 2000 / 3000 mm

Price Category 2

Greenguard

Eco friendly icon Fire retardant icon PVC free icon Greent Star icon2

Tuff

Width: 3000 mm

Price Category 2

Greenguard

Eco friendly icon Fire retardant icon PVC free icon Greent Star icon2

Rivage

Width: 2000 / 3000 mm

Price Category 2

Greenguard

Eco friendly icon Fire retardant icon PVC free icon Greent Star icon2

Skye

Width: 3200 mm

Price Category 2

Greenguard

Eco friendly icon Fire retardant icon PVC free icon Greent Star icon2

Floyd

Width: 2400 / 3000 mm

Price Category 2

Greenguard

Eco friendly icon Fire retardant icon PVC free icon Greent Star icon2

Reed

Width: 3200 mm

Price Category 2

Greenguard

Eco friendly icon Fire retardant icon PVC free icon Greent Star icon2

Coast

Width: 2000 / 3000 mm

Price Category 2

Greenguard

Eco friendly icon Fire retardant icon PVC free icon Greent Star icon2

Kaali

Width: 3200 mm

Price Category 2

Greenguard

Eco friendly icon Fire retardant icon PVC free icon Greent Star icon2

Jet

Width: 2400 / 3000 mm

Price Category 2

Greenguard

Eco friendly icon Fire retardant icon PVC free icon Greent Star icon2

Brochures

Download a product brochure (pdf):

Cleaning & Maintenance

To learn how to care for your blinds correctly, please download and read our instruction guide pdf:

Warranty

All products come with a 2-year manufacturer’s warranty for commercial applications. For full warranty details please download the following pdf file:
